The Innovation Challenge in Medical Device Engineering
In the medical device industry, your teams are at the center of a difficult challenge. The market demands constant innovation on compressed timelines, while patient safety and regulatory bodies require meticulous, time-consuming validation. As an engineering leader, your success depends on guiding projects through this entire lifecycle, from research and development to high-volume manufacturing.
Success means managing complex regulatory standards, quality control, and global supply chains. A delay in any area can impact your launch schedule and budget. In this environment, a significant bottleneck has emerged: programming the firmware onto the flash memory of your devices.
Modern medical devices are driven by complex software. This firmware is the core of the device’s intelligence, and it lives on flash memory chips. As firmware files have grown from kilobytes to gigabytes, the time it takes to load them has increased dramatically. What was once a quick step has now become a major factor that dictates the pace of your entire workflow. This makes programming speed a strategic issue that directly impacts your ability to meet critical time-to-market goals.
The Challenge of Programming at Scale
Slow flash programming creates delays that ripple through every phase of the product lifecycle. These seemingly small periods of “wait time” add up, creating inefficiencies that stretch from the R&D lab to the manufacturing floor. Depending on the size of the firmware files being loaded, this process can take several hours.
Your engineers work in a constant loop: they write code, compile it, load (or “flash”) it to the hardware, and test it. During development, the speed of this cycle is fundamental to progress, as each iteration time will greatly limit overall project timelines. On the manufacturing floor, this programming time will directly impact the amount of time it takes to complete and test each instance of the device, limiting the overall throughput of your manufacturing resources.
For board-level access and testing, boundary-scan (JTAG) is an indispensable industry-standard technology. It provides essential pin-level control for debugging and structural tests.
However, JTAG was designed for precision and universal accessibility, not for transferring large files. It moves data serially (one bit at a time) through a chain of components. While perfect for its intended purpose, programming multi-megabyte or larger firmware files this way can take minutes to hours per board.
In the development lab, these delays interrupt the creative flow of problem-solving. Instead of running dozens of code iterations in a day to quickly solve bugs, your engineers might only manage a handful. This directly extends the debug and validation phases of your project.
On the manufacturing line, the cost of this delay multiplies. The “beat rate” – the time allocated for each task at a production station – is a core measure of efficiency. When a single programming step takes ten minutes or more, it can become a massive bottleneck, slowing down the entire line and increasing the cost per unit. This inefficiency can constrain growth and profitability, especially when managing multiple manufacturing sites.

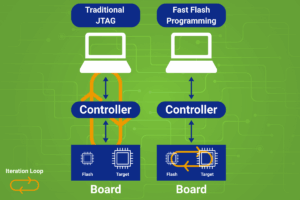

A Faster Approach: Using On-Board Intelligence for Programming
A medical device manufacturer costs are tied to the number of units produced per hour. Previously, each device was connected via an external JTAG port, and the entire firmware is pushed through slow and time-consuming. With our approach, a lightweight programming agent loads onto the device via JTAG. This agent then uses the device’s internal high-speed bus to flash the firmware in seconds.
Result: Reducing costs and decreasing time to market.
The Strategic Impact: From Faster Flashing to a Faster Launch
Adopting a fast flash programming strategy delivers real benefits across your entire organization.
A Much Faster Debug Cycle
By cutting the “code-flash-test” cycle from minutes to seconds, you enable your engineers to perform many more validation cycles each day. This rapid iteration allows for faster bug resolution and shortens the expensive R&D phase, creating a more predictable path to product launch.
Increased Manufacturing Throughput
On the production line, reducing programming time can dramatically improve the manufacturing beat rate. This increases the capacity of your existing lines and lowers the per-unit cost, directly improving efficiency and profit margins.
Improving Quality and Easing Compliance
A faster, automated programming process is also a more repeatable and traceable one. The detailed logs generated by your testing solution provide invaluable documentation for your Quality Management System (QMS), supporting compliance with standards like ISO 13485. This aligns with the principles of quality and reliability championed by standards bodies like IPC and the Association for the Advancement of Medical Instrumentation (AAMI), which are critical for ensuring patient safety.
Enhanced Operational Agility
The ability to program devices quickly allows you to respond rapidly to changing needs. You can push critical firmware updates to devices in inventory without creating a production bottleneck. It also allows you to buy unprogrammed “commodity” flash memory and program it just-in-time, reducing supply chain risks and giving you greater control over inventory.
Conclusion: Reclaiming Control of Your Product Timeline
In medical device engineering, success means delivering innovation to market quickly, without compromising safety or quality. Traditional firmware programming methods, while essential for many tasks, have become a bottleneck for loading the large firmware files of modern devices.
Leveraging your device’s existing on-board intelligence with technologies like ScanWorks’ Fast Flash Programming offers a clear solution. By turning your hardware into a high-speed, self-programming asset, you can collapse programming times from minutes to seconds, without additional hardware costs. This strategic move reduces risks in project schedules, improves manufacturing efficiency, and strengthens your quality and compliance, resulting in faster time to market and increased sales. It empowers your engineering teams to innovate faster, giving you a clear competitive advantage in a market that rewards both speed and precision.
